Features of Piezo Ultrasonic Atomizer
Product applications of Piezo Atomizer Ultrasonic Atomizer
1. Home appliances, office, medical care
2. Humidification of interior environment such as car
3. Aroma and disinfection
*The product with spray aperture of 3 ~ 6um can be used in medical treatment, especially for the treatment of bronchial and upper respiratory tract;
*The product with 6 ~ 12um spray aperture can be applied to indoor aroma, facial beauty, hair care and other aspects.

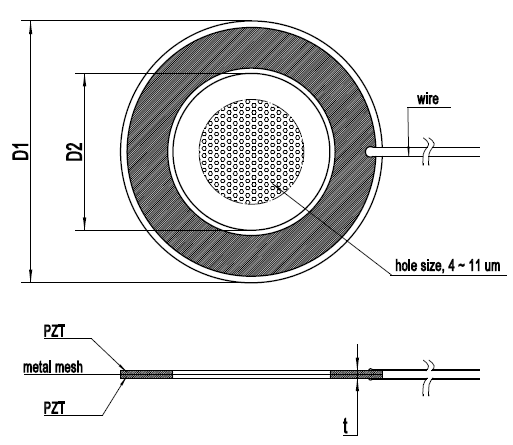

Dimension of Atomizer
Specification
Model | Material of mesh | Hole Size | Atomizing Capacity | Resonance Frequency | Electrical capacitance | Impedance | Driving voltage | OD /D1 | Thickness/t |
[ µm ] | [ ml/min ] | [ KHz ] | [ nF ] | [Ω] | [Vp-p] | [ mm ] | [ mm ] |
|
| ±10 | ±30% |
| ±20% | ±0.3 | ±0.05 |
KLJ135-14.0C-1(4) | Ni-Co | 4 | 0.68 | 135±8 | 3.5 | ＜100 | 55 | 14 | 0.6 |
KLJ135-14.0C-1(6) | Ni-Co | 6 | 1.87 | 135±8 | 3.5 | ＜100 | 55 | 14 | 0.6 |
KLJ135-14.0C-1(8) | Ni-Co | 8 | 4.9 | 135±8 | 3.5 | ＜100 | 55 | 14 | 0.6 |
KLJ113-16.0C-1(4) | Ni-Co | 4 | 0.89 | 113±8 | 4.9 | ＜100 | 55 | 16 | 0.6 |
KLJ113-16.0C-1(6) | Ni-Co | 6 | 3.46 | 113±8 | 4.9 | ＜100 | 55 | 16 | 0.6 |
KLJ113-16.0C-1(8) | Ni-Co | 8 | 6.87 | 113±8 | 4.9 | ＜100 | 55 | 16 | 0.6 |
KLJ113-20.0C-1(4) | Ni-Co | 4 | 0.95 | 113±11 | 6.3 | ＜100 | 55 | 20 | 0.6 |
KLJ113-20.0C-1(6) | Ni-Co | 6 | 3.21 | 113±11 | 6.3 | ＜100 | 55 | 20 | 0.6 |
KLJ113-20.0C-1(8) | Ni-Co | 8 | 9.83 | 113±11 | 6.3 | ＜100 | 55 | 20 | 0.6 |
KLJ135-14.0C-1(6) | SUS304 | 6 | 0.35 | 135±8 | 3.5 | ＜100 | 55 | 14 | 0.6 |
KLJ135-14.0C-1(8) | SUS304 | 8 | 0.7 | 135±8 | 3.5 | ＜100 | 55 | 14 | 0.6 |
KLJ135-14.0C-1(10) | SUS304 | 10 | 1.15 | 135±8 | 3.5 | ＜100 | 55 | 14 | 0.6 |
KLJ135-14.0C-1(12) | SUS304 | 12 | 1.75 | 135±8 | 3.5 | ＜100 | 55 | 14 | 0.6 |
KLJ113-16.0C-1(6) | SUS304 | 6 | 0.47 | 113±8 | 4 | ＜100 | 55 | 16 | 0.6 |
KLJ113-16.0C-1(8) | SUS304 | 8 | 1.6 | 113±8 | 4 | ＜100 | 55 | 16 | 0.6 |
KLJ113-16.0C-1(10) | SUS304 | 10 | 2.6 | 113±8 | 4 | ＜100 | 55 | 16 | 0.6 |
KLJ113-16.0C-1(12) | SUS304 | 12 | 3.5 | 113±8 | 4 | ＜100 | 55 | 16 | 0.6 |
KLJ113-20.0C-1(6) | SUS304 | 6 | 0.96 | 113±11 | 6.5 | ＜100 | 55 | 20 | 0.6 |
KLJ113-20.0C-1(8) | SUS304 | 8 | 2.75 | 113±11 | 6.5 | ＜100 | 55 | 20 | 0.6 |
KLJ113-20.0C-1(10) | SUS304 | 10 | 4.3 | 113±11 | 6.5 | ＜100 | 55 | 20 | 0.6 |
KLJ113-20.0C-1(12) | SUS304 | 12 | 6.95 | 113±11 | 6.5 | ＜100 | 55 | 20 | 0.6 |
