You are here: Home / Piezo ceramic transducer / Piezo Strain Capacitor / Piezoelectric Strain Capacitance Plate

Piezoelectric Strain Capacitance Plate

Share to:

 1.Compact size and simple construction
 2.High reliability and strong antioxidant capacity

Quantity:

Features of Piezoelectric strain capacitance plate


  •  Compact size and simple construction

  •  High reliability and strong antioxidant capacity

Scope of applications of Piezoelectric capacitance plate

  •  The original handwriting electronic product

  •  Electronic drawing board

  •  Smart phone

  •  Electronic reading machine

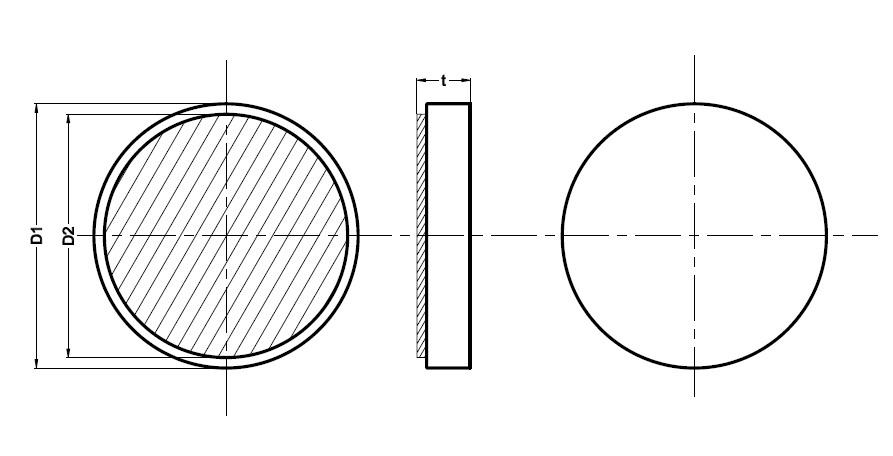

Dimension


Specification


Model

Product dimensions

Electrode dimensions

Electrical capacitance

Temperature

D1×t

D2

[ pF]

[%]

[mm]

[mm]

@500KHz1V

±10%

KLJ2.9-070-1

Φ2.9×1.0

Φ2.55±0.05

70±7%

-30℃80℃

KLJ2.9-115-1

Φ2.9×1.0

Φ2.55±0.05

115±7%

-30℃80℃

KLJ4-150-1

Φ4×1.0

Φ3.6±0.05

150±7%

-30℃80℃

KLJ4-080-2

Φ4×1.0

Φ3.6±0.05

80±7%

-30℃80℃

KLJ4-230-2

Φ4×1.0

Φ3.6±0.05

230±7%

-30℃80℃

KLJ2.8-120-1


Φ2.0±0.05

120±7%

-30℃80℃

*Customize on request.
