1. LCP is applied as housing material with properties including heat resistance and acid-alkali resistance
2. Well-chosen yellow grass is applied as lead pin material in order to provide best welding property to the product.

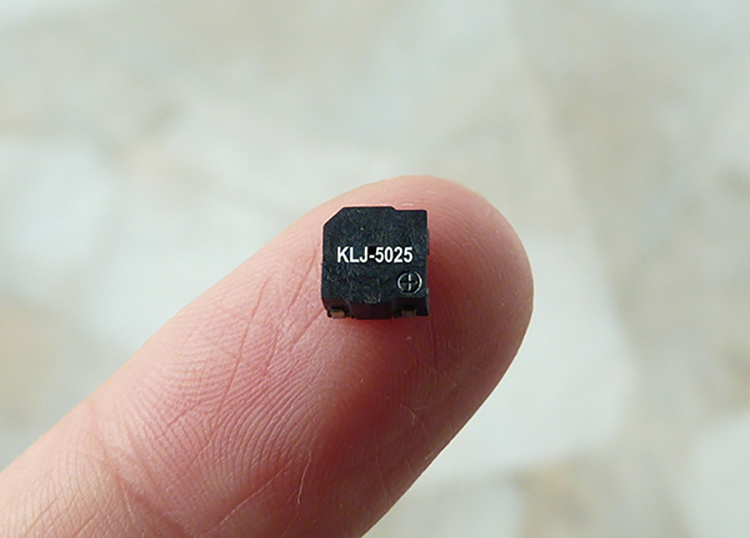

3. Tiny size of the product adapts to more multiple PCB space design.It meets the trend of making electronic products ultimately small and thin.
4. Mature SMD design perfectly meets the SMT requirements which greatly improved welding efficiency.
5. Steadily effective distance of sound output is very suitable for a wide range of portable electronic devices
6. Rated square wave output and rated voltage are needed
7. ROHS Directive-compliant

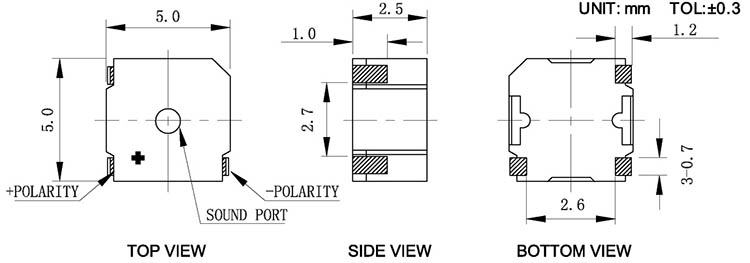

|Technical Parameters||KLJ-5020 SMD Magnetic Buzzer|
|Current Consumption(mA/max)||100 at Rated Voltage|
|Sound Pressure Level(dB/min)||78 at 10cm at Rated Voltage|
|Operating Temperature(℃）||-20~ +85|
|Storage Temperature(℃）||-30 ~ +85|
|Environment Compulsory Standard||ROHS|
|PS: Vp-p=1/2duty, square wave|
|Audible distance at rated vol.||1m|
|Application||Mini type smart electronic devices, such as wearable smart devices, artificial intelligence devices, medical devices, Bluetooth system devices, sports DV, smart earphone and more.|
Integrated precision electroacoustic devices, including electronic buzzer, as a warning function for different electronic devices.
Small and thin, with exquisite workmanship and high production efficiency. We try to meet the trend of making electronic products ultimate small and thin.
It can be widely used for cell phone accessories, tablet personal computer accessories, Bluetooth system devices, bank payment system, terminal device of Internet of things, wearable smart devices, GPS system, medical devices, etc.
1. Our products meet the standard of ROHS,REACH,IOS:9001-2008,etc.
2. The item that sound pressure level value and Audible distance is just for reference.It depends on your using environment. In general,smaller the buzzer is,shorter the valid hearing distance is.
3. Pin feet can be plated with gold or brass.
4. We can provide more detailed information if you need certain type's specification.For example,picture of structure of product.
5. We can offer solution and advice according to your operating requirement.Helping you choose the type you need.
|Housing Material||LCP plastic resin (Color : Black)|

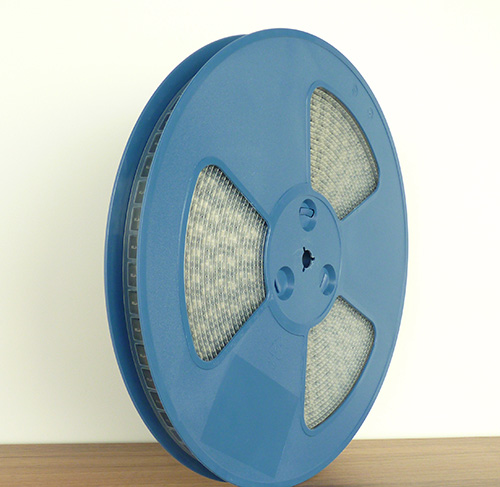

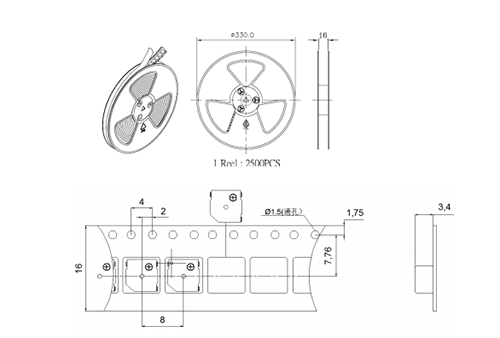

|Packing||2.5k PCS / Carrier Reel|
|1 roll carrier reel|
|10 Inner Box|
|25k PCS Buzzer|
|Storage Life||6 months preservation at room temp(25±3℃）Humidity 30%|
