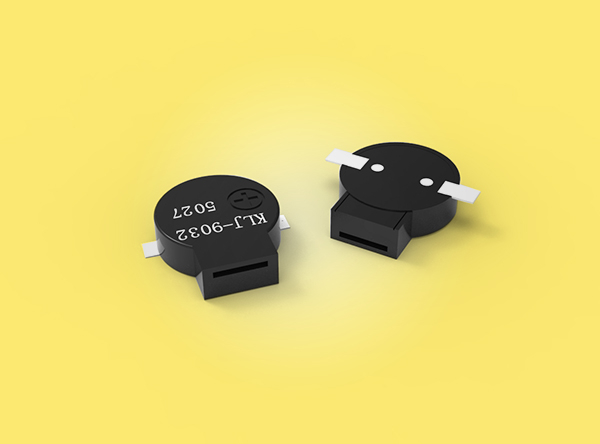

KLJ-9032-5027 SMD Magnetic Buzzer

Share to:

1. LCP is applied as housing material with properties including heat resistance and acid-alkali resistance
2. Well-chosen yellow grass is applied as lead pin material in order to provide best welding property to the product.
3. Tiny size of the product adapts to more multiple PCB space design.It meets the trend of making electronic products ultimately small and thin.
4. Mature SMD design perfectly meets the SMT requirements which greatly improved welding efficiency.
5. Steadily effective distance of sound output is very suitable for a wide range of portable electronic devices
6. Rated square wave output and rated voltage are needed
7. ROHS Directive-compliant

Quantity:
  • KLJ-9032-5027
  • KELIKING

Product Description


1 (2)

Technical   Parameters KLJ-9032-5027 SMD Magnetic Buzzer
Oscillation Frequency(Hz) 2731
Operating Voltage(Vp-p) 4.5-6.5
Rated Voltage(Vp-p) 5
Current Consumption(mA/max) 90 at Rated Voltage
Sound Pressure Level(dB/min) 86 at 10cm at Rated Voltage
Coil Resistance(Ω) 25±3/31±4
Operating   Temperature(℃ -20~ +85
Storage Temperature(℃ -30 ~ +85
Environment Compulsory Standard ROHS
PS: Vp-p=1/2duty, square wave
Application Range
Audible distance at rated vol. 10m
Application Smart electronic devices, electronic alarm clocks, car child safety seats, diaper for old people, dashboard, tire pressure testing devices, POS machine, burglar alarm for cars ,mini artificial intelligence devices and more

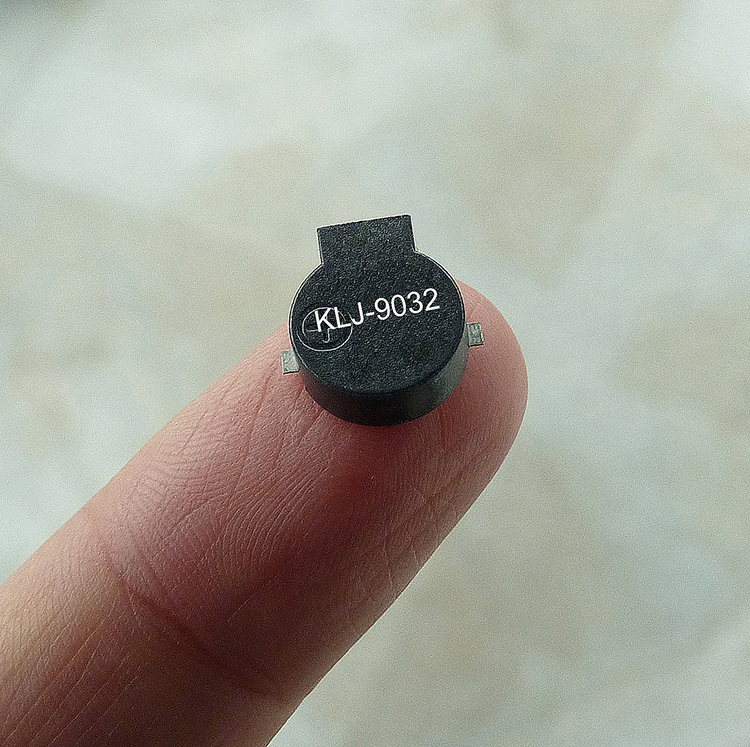

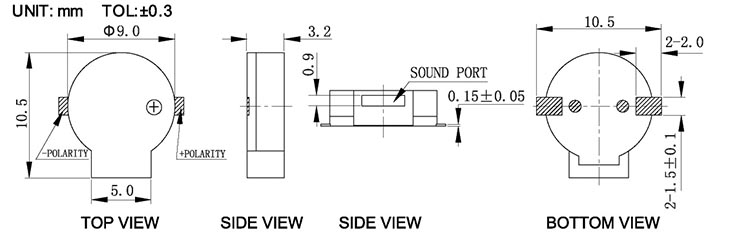

2 (2)2 (1)






Product Introduction




Main Products:

Integrated precision electroacoustic devices, including electronic buzzer, as a warning function for different electronic devices.

Features:

Small and thin, with exquisite workmanship and high production efficiency. We try to meet the trend of making electronic products ultimate small and thin.

Applications:

It can be widely used for cell phone accessories, tablet personal computer accessories, Bluetooth system devices, bank payment system, terminal device of Internet of things, wearable smart devices, GPS system, medical devices, etc.


1. Our products meet the standard of ROHS,REACH,IOS:9001-2008,etc.

2. The item that sound pressure level value and Audible distance  is just for reference.It depends on your using environment. In general,smaller the buzzer is,shorter the valid hearing distance is.

3. Pin feet can be plated with gold or brass.

4. We can provide more detailed information if you need certain type's specification.For example,picture of structure of product.

5. We can offer solution and advice according to your operating requirement.Helping you choose the type you need.


Package



3 (1)3 (1)3 (2)


Housing Material LCP plastic resin (Color : Black)
Terminal SMD Type
Dimension L9.0×W9.0×H3.2mm
Weight 0.3g
Packing 1k PCS / Carrier Reel
Inner Box 330*330*30mm
1 roll carrier reel
Carton 370*350*350(MM)
10 Inner Box
10k PCS Buzzer
