Features of Piezoelectric Sound Transducer
1.Compact size
2.Low power consumption
3.Infrequent distortions
4.Long service life
Product applications of Sound Pick-up Transducer
1.Turntable Head
2.Sound pick-up
3.Sound pick-up stick

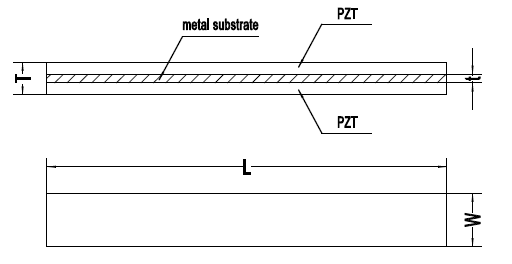

Dimension Piezoelectric Sound Pick-up Transducer
Specification
Model | Dimension | Resonant frequency | Electrical capacitance | Impedance |
A×B×H [mm] | [KHz] | [pF] | [KΩ] |
KLJ16-1.6-0.55-1 | 16×1.6×0.55 | 5.0±0.5 | 1000±300 | ≤45 |
*Customize on request.
Using Condition of piezo transducer:
Working temperature of this device range for - 10 ~ 50 ℃. Using it in low humidity environment. High temperature easy to cause damage or reduce performance.If the humidity is too high, it is easy to make the device insulation resistance drop and affect the service life of the device or damage the device.
