Piezoelectric Ultrasonic Transducer for Beauty Instrument

Share to:

1. Compact size,simple structure
2. High reliability
3. High energy conversion

Quantity:

Features of Piezoelectric Ultrasonic Transducer


  •  Compact size,simple structure

  •  High reliability

  •  High energy conversion



Scope of applications of Ultrasonic Transducer

1. Ultrasonic cleansing and firming beauty instrument

2. Ultrasonic anti-wrinkle skin beauty instrument

3. Micro-vibration ion eye beauty instrument

4. Anti-wrinkle beauty instrument

5. 3D lipolysis slimming massage beauty instrument

6. 4D lipolysis slimming massage beauty instrument

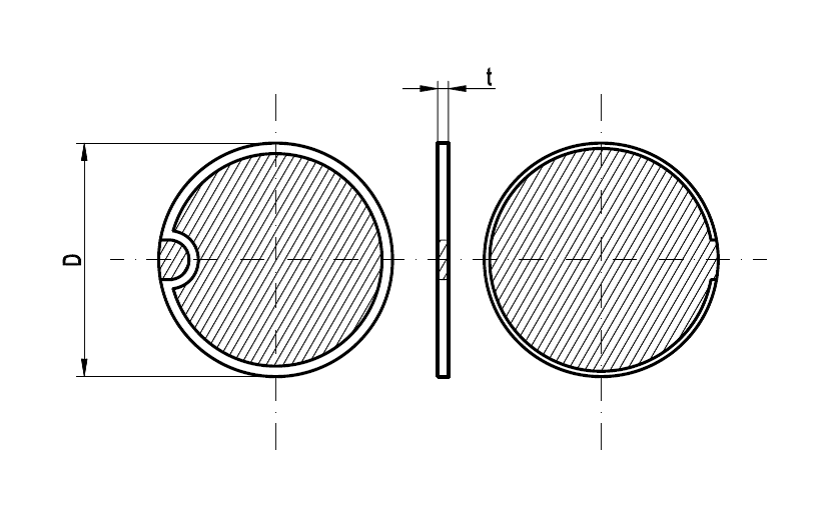

Dimension of Ultrasonic Transducer for Beauty Instrument


Specification of Piezoelectric Transducer


Model

Dimensions

Electrical capacitance

Electromechanical
coupling coefficient

Resonant Frequency

Equivalent Resistance

D×t

@1KHz1V

Kp

Fr

R0

[mm]

[nF] ±25%

[%]

[MHz] ±5%

[Ω]

KLJ28-2.04-1

Φ28×2.04

3

≥52

1

≤3.5Ω

KLJ28-1.02-1

Φ28×1.02

6

≥54

2

≤3.5Ω

KLJ25-0.41-1

Φ25×0.41

12.3

≥56

5

≤2.5Ω

KLJ20-0.41-1

Φ20×0.41

7.9

≥56

5

≤2.5Ω

KLJ20-0.67-1

Φ20×0.67

5.2

≥56

3

≤2.5Ω

KLJ16-0.41-1

Φ16×0.41

2.45

≥48

5

≤3.5Ω

*Customize on request.
