Features Actuator for Jacquard Comb of Warp knitting machine
Compact size, low power consumption
Large displacement, quick response, high reliability
Scope of applications of Actuator for Jacquard Comb
Specification

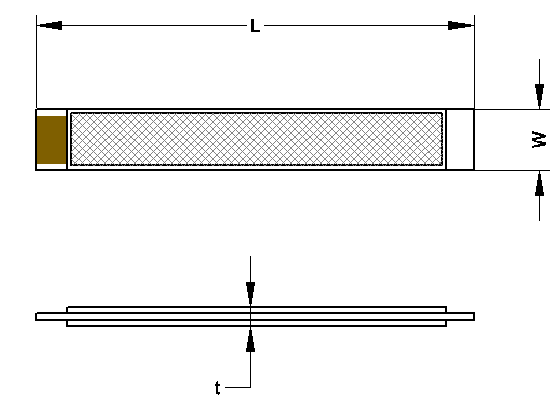

Model | Dimensions | Nominal displacement | Blocking force | Leakage current | Electrical capacitance |
L×W×t [mm] | [mm@1Hz] | [mN] | [uA] | [uF@1V, 100Hz] |
KLJ52-7.0-0.82-1 | 52×7.0×0.82 | ≥0.9 | ≥300 | ≤0.5 | 36~54 |
KLJ52-7.0-0.82-3 | 52×7.0×0.82 | ≥1.2 | ≥300 | ≤0.5 | 40~62 |
* Operating temp. range :-10℃～+70℃
Operating voltage: 190V DC
Frequency ≤25Hz
Relative humidity : ≤80%
*Customize on request
The actuator with bidirectional displacement H≥0.9mm is suitable for Jacquard comb with slot spacing of 1.25mm~1.5mm. The actuator with bidirectional displacement H≥1.2mm is suitable for Jacquard comb with slot spacing of 1.5mm~2.1mm. At the same time, H≥0.9mm products can be used for Jacquard comb with slot spacing less than 1.25mm at low driving voltage, depending on the situation.
