Piezo Bending Actuators Bimorph Black

Piezo Bending Actuators Bimorph Black
Piezo Bending Actuators Bimorph Black
Piezo Bending Actuators Bimorph Black
Share to:

1. Compact size
2. Low power consumption
3. Large displacement
4. Quick response
5. High reliability

Quantity:
Inquire Add to Basket

Features


  • Compact size

  • Low power consumption

  • Large displacement

  • Quick response

  • High reliability



Scope of applications


  • Computerized large diameter Circular

  •  Seamless underwear

  •  Hosiery circular knitting machines

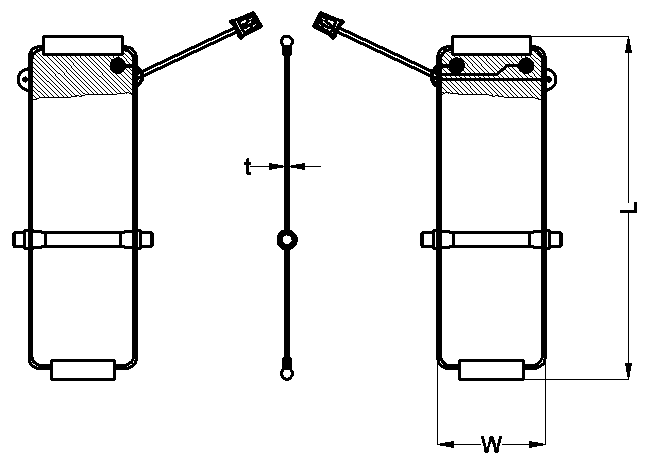

    Dimension




Specification


Model

Dimensions

Nominal displacement

Blocking force

Leakage current

Electrical capacitance

L×W×t [mm]

[mm]

[mN]

[uA]

[nF@1V, 100Hz]

KLJ60-20-0.53-2

60×20×0.53

≥0.80

≥300

≤0.6

270-450


 * Operating temp. :-10℃～+70℃

   Operating voltage: 48V DC

   Frequency: ≤70Hz

   Relative humidity : ≤80%
*Customize on request.
