Features
Compact size
Low power consumption
Large displacement
Quick response
High reliability
Scope of applications
Computerized large diameter Circular
Seamless underwear
Hosiery circular knitting machines

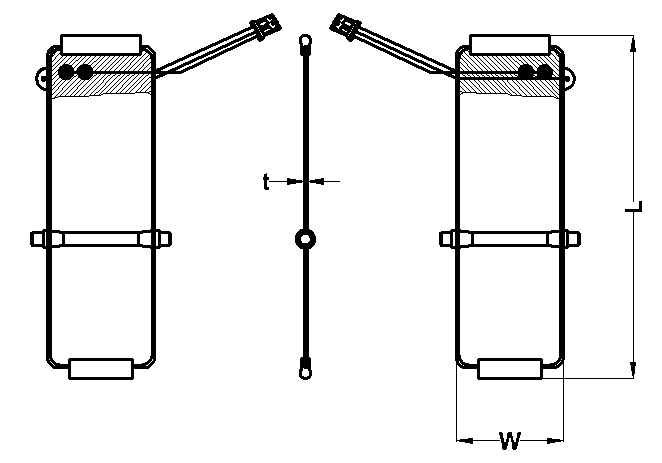

Dimension
Specification
Model | Dimensions | Displacement | Blocking force | Leakage current | Electrical capacitance |
L×W×t [mm] | [mm] | [mN] | [uA] | [nF@1V, 100Hz] | |
KLJ60-20-0.53-4 | 60×20×0.53 | ≥0.30 Unilateral | ≥300 | ≤0.6 | 144-216 |
* Operating temp. :-10℃~+70℃
Operating voltage: 96V DC
Frequency: ≤70Hz
Relative humidity : ≤80%
*Customize on request.
