Piezo Bending Actuators for Pneumatic Valve Piezoelectric Actuator

Share to:

1. Compact size, light weight
2. Large displacement
3. Quick response

Quantity:
  • KLJ25-7.1-0.5-1
  • Piece

Features of Bending Actuators


  • Compact size, light weight

  • Large displacement

  • Quick response



Scope of applications of Bending Actuator


Intelligent electric-pneumatic valve

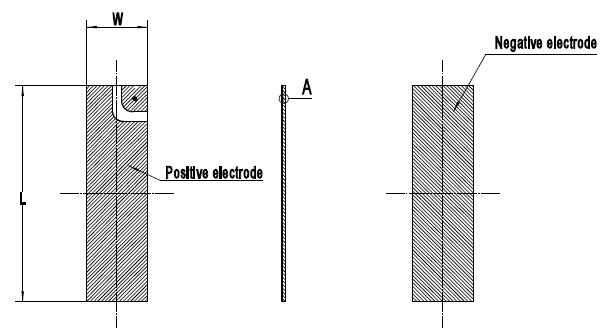

Dimension of Piezo Bending Actuators for Pneumatic Valve Piezoelectric Actuator




Specification of Piezoelectric Actuator


Model

Length
[mm]

Width
[mm]

Thickness
[mm]

Free length
[mm]

Nominal displacement
[mm]

Blocking force
[mN]

Electrical capacitance[nF]

Operating voltage
[V]

 QDTE25-7.1-0.5-1

25.0

7.1

0.50

18.0

0.05

50

75

24

*Customize on request.



Using conditions:

Environment temperature-10℃+70℃(Include other assembly processes and use processes)
Operating voltage
24VDC
Maximum voltage
50VDC


Further contact with us!
