KLJ52-2(4) series
Features
Compact size, low power consumption
Large displacement, quick response, high reliability
Scope of applications
Jacquard comp(E14/E18/E20/E22/E24/E28/E30/E32) of Warp knitting machine

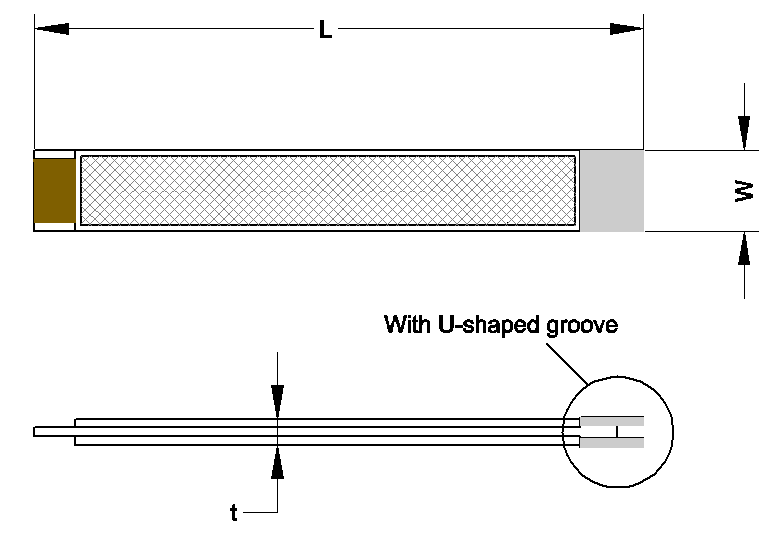

Dimension
Specification
Model | Dimensions | Nominal displacement | Blocking Force | Leakage Current | Electrical capacitance | Remarks |
L×W×T[mm] | [mm@1Hz] | [mN] | [µA] | [nF@1V, 100Hz] | ||
KLJ52-7.0-0.82-2 | 52×7.0×0.82 | ≥0.9 | ≥300 | ≤0.5 | 36~54 | with U-shaped groove |
KLJ52-7.0-0.82-4 | 52×7.0×0.82 | ≥1.2 | ≥300 | ≤0.5 | 40~62 | with U-shaped groove |
* Operating temp. range :-10℃~+70℃
Operating voltage: 190V DC
Frequency ≤25Hz
Relative humidity : ≤80%
*Customize on request
The actuator with bidirectional displacement H≥0.9mm is suitable for Jacquard comb with slot spacing of 1.25mm~1.5mm. The actuator with bidirectional displacement H≥1.2mm is suitable for Jacquard comb with slot spacing of 1.5mm~2.1mm. At the same time, H≥0.9mm products can be used for Jacquard comb with slot spacing less than 1.25mm at low driving voltage, depending on the situation.
Features
Compact size, low power consumption
Large displacement, quick response, high reliability
Scope of applications
Jacquard comp(E14/E18/E20/E22/E24/E28/E30/E32) of Warp knitting machine
Dimension
Specification
Model | Dimensions | Nominal displacement | Blocking Force | Leakage Current | Electrical capacitance | Remarks |
L×W×T[mm] | [mm@1Hz] | [mN] | [µA] | [nF@1V, 100Hz] | ||
KLJ52-7.0-0.82-2 | 52×7.0×0.82 | ≥0.9 | ≥300 | ≤0.5 | 36~54 | with U-shaped groove |
KLJ52-7.0-0.82-4 | 52×7.0×0.82 | ≥1.2 | ≥300 | ≤0.5 | 40~62 | with U-shaped groove |
* Operating temp. range :-10℃~+70℃
Operating voltage: 190V DC
Frequency ≤25Hz
Relative humidity : ≤80%
*Customize on request
The actuator with bidirectional displacement H≥0.9mm is suitable for Jacquard comb with slot spacing of 1.25mm~1.5mm. The actuator with bidirectional displacement H≥1.2mm is suitable for Jacquard comb with slot spacing of 1.5mm~2.1mm. At the same time, H≥0.9mm products can be used for Jacquard comb with slot spacing less than 1.25mm at low driving voltage, depending on the situation.
